Whirlpool Washer Motor Coupling Repair in Fort Lauderdale, FL

Customer Concern

A homeowner in Fort Lauderdale, Florida 33301 needed service for two appliances during the same visit: a Whirlpool washer and a KitchenAid dishwasher.

The washer had a clearly documented operating symptom: The washer was not spinning. The dishwasher also required service, although the original customer-reported dishwasher symptom was not documented in the available notes.

Both appliances were diagnosed and serviced during the visit.

Common Signs of These Appliance Failures

Washer Motor Coupling Failures

Direct-drive washers utilize a plastic and rubber coupling to connect the motor to the transmission. When this shears or breaks, homeowners notice:

• ⚠️ Fills and Drains, But Won't Spin or Agitate: The washer progresses through the timer normally, taking in water and draining it out, but the basket remains completely still during the wash and spin cycles.
• ⚠️ Loud Vibrations or Grinding: As the coupling fails, the metal prongs may grind against each other or the rubber isolator, producing loud, jarring noises.

Dishwasher Control Panel/Button Issues

When user interface panels or tactile buttons begin to fail due to moisture intrusion or mechanical wear, the dishwasher exhibits:

• ⚠️ Unresponsive Buttons: Certain cycles or options can no longer be selected, even if the unit has power.
• ⚠️ Erratic Behavior: The dishwasher starts by itself, cycles randomly change mid-wash, or the display flashes continuously.

What the Technician Found

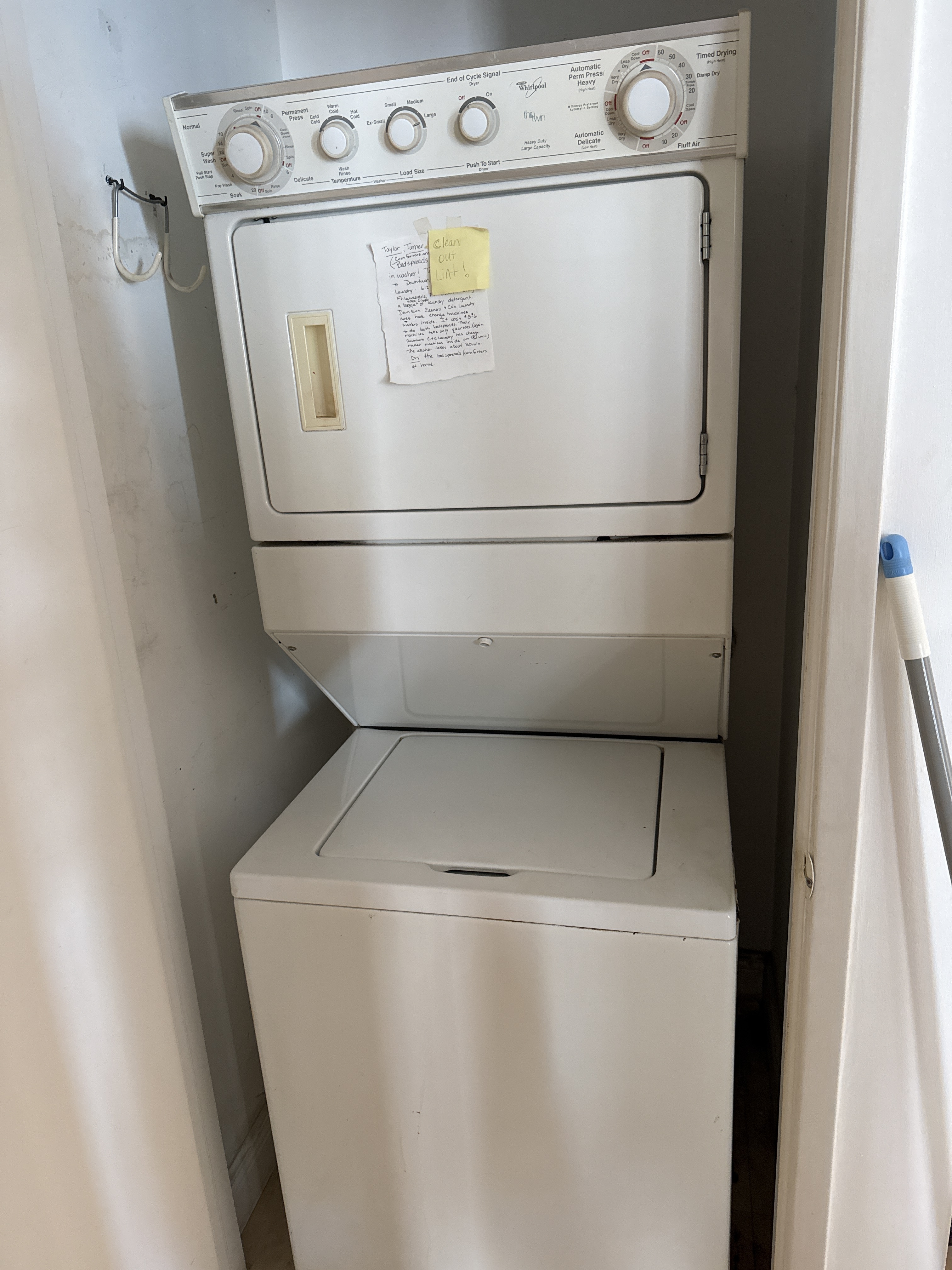

Whirlpool Washer Not Spinning

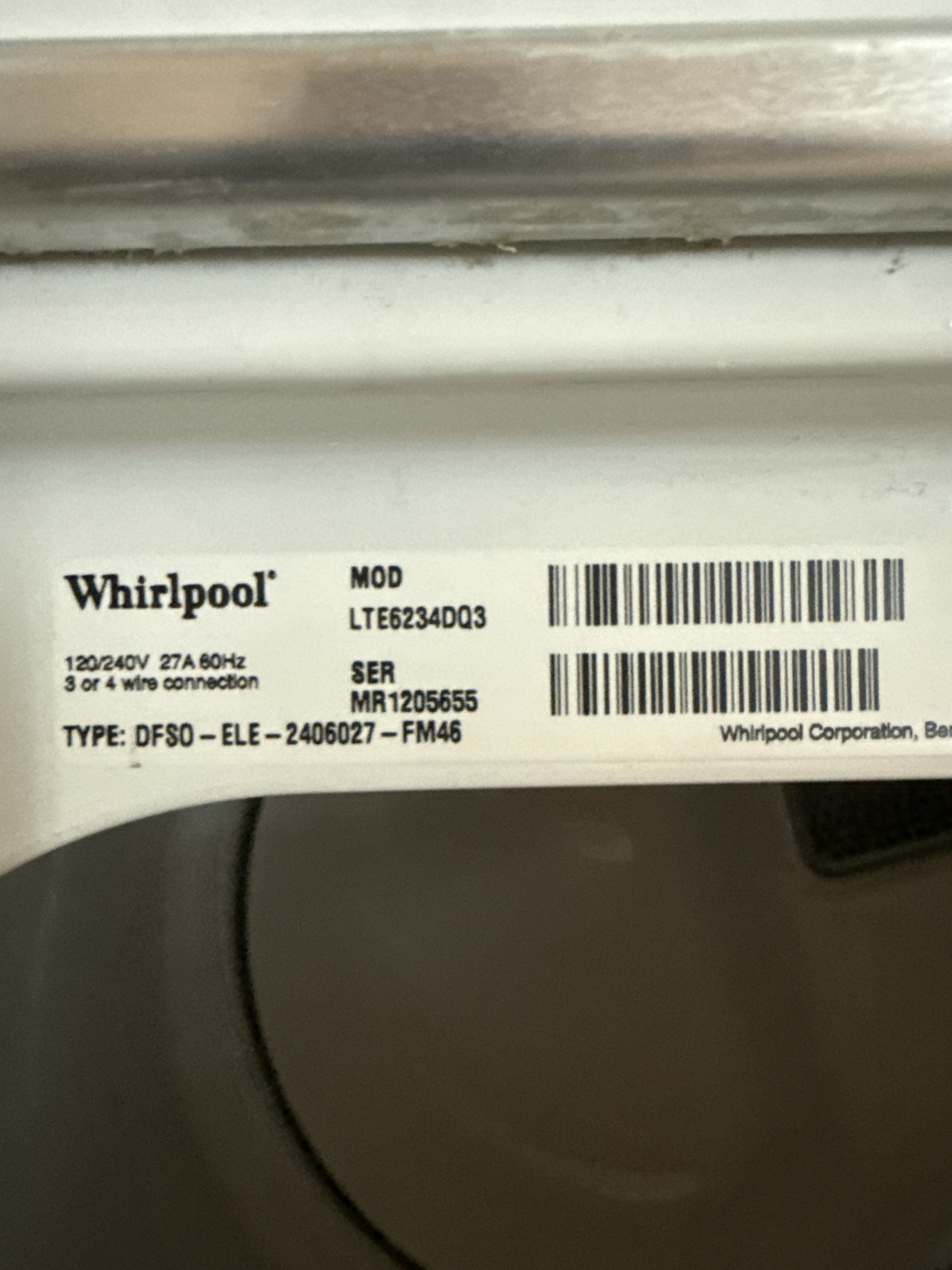

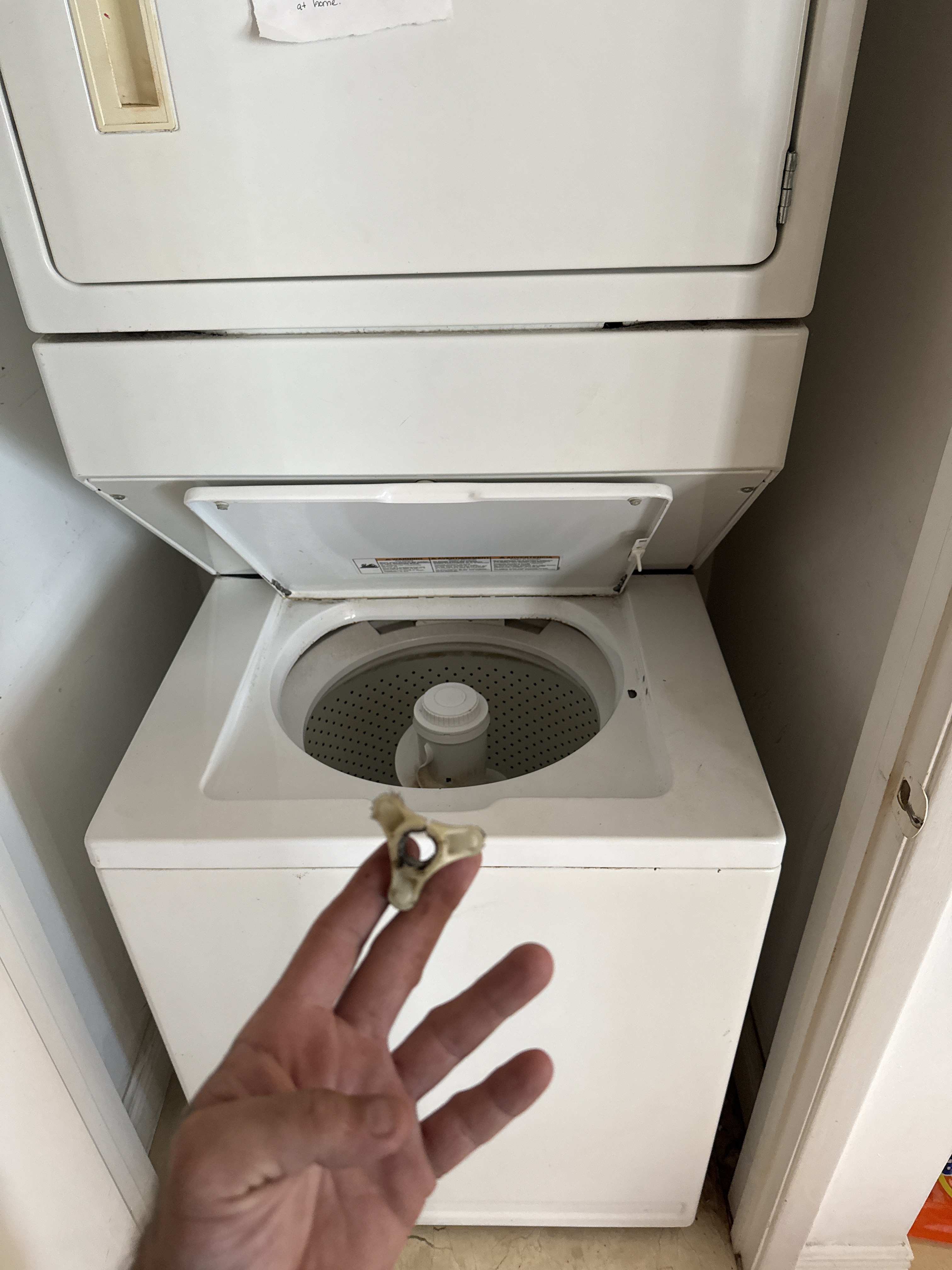

The field identification photograph confirms the washer as a Whirlpool LTE6234DQ3. The technician diagnosed a bad motor coupling as the cause of the washer's no-spin condition.

That gives us a direct symptom-to-diagnosis relationship: Washer not spinning → Bad motor coupling diagnosed.

KitchenAid Dishwasher Control Panel

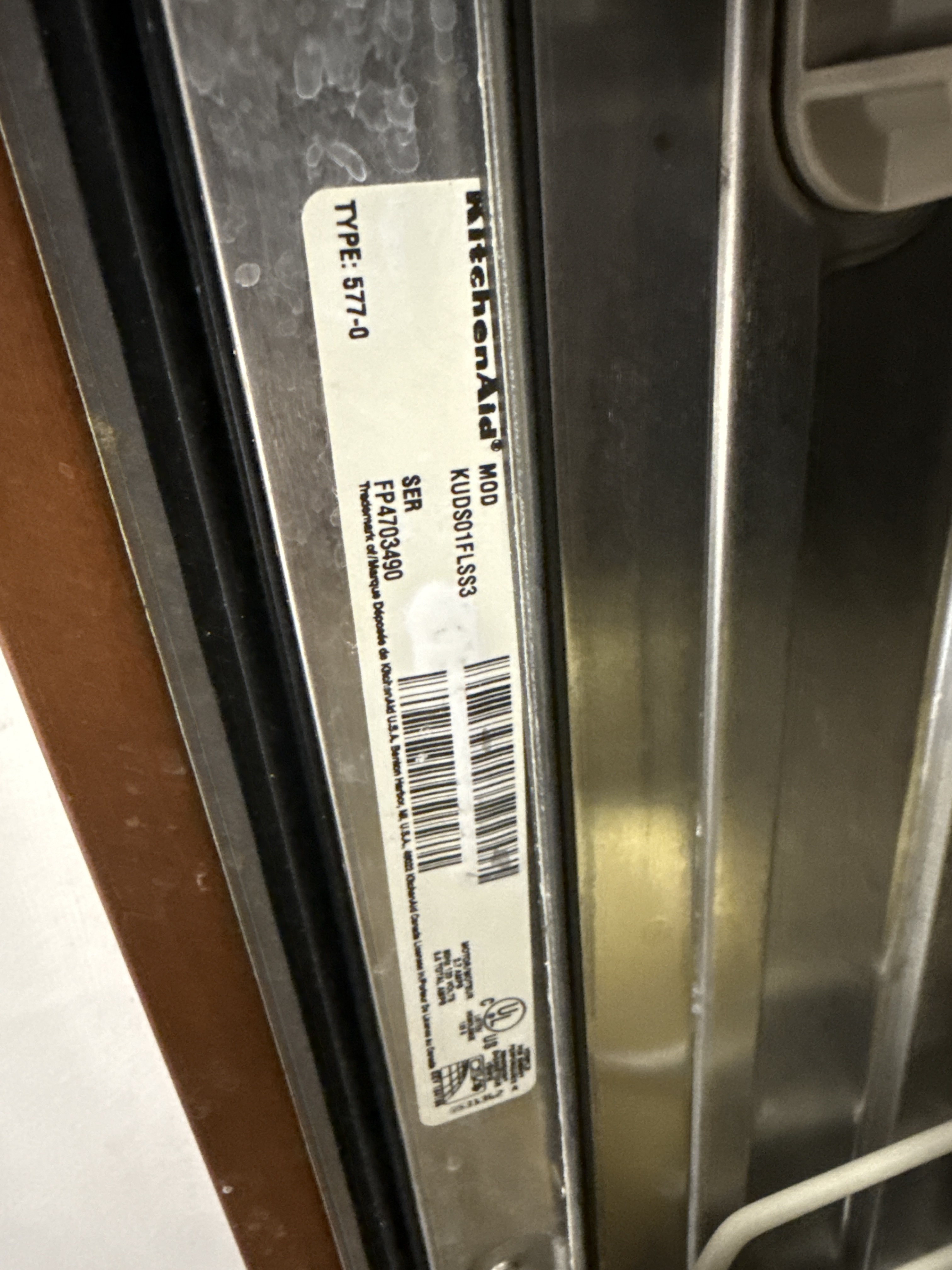

The second appliance was identified by its field model tag as a KitchenAid KUDS01FLSS3. The technician diagnosed the dishwasher with a bad control panel.

The Repairs Performed & Outcome

Whirlpool Washer Motor Coupling Repair

The motor coupling was replaced. After the repair, the technician checked the washer and documented that the unit runs great. The complete service chain is: Washer not spinning → Bad motor coupling diagnosed → Motor coupling replaced → Washer checked after repair → Unit runs great.

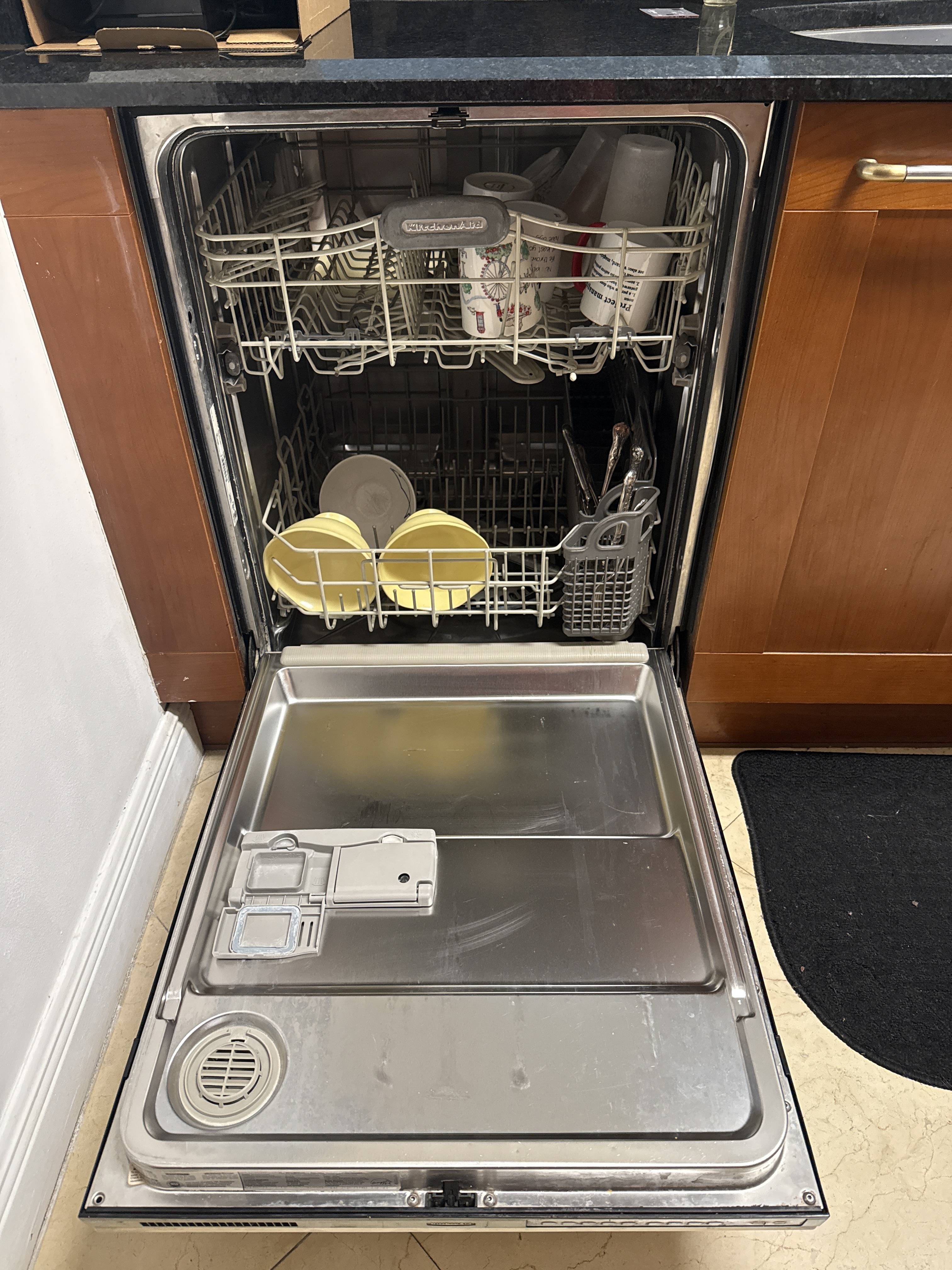

KitchenAid Dishwasher Service

The documented service performed was: Buttons installed. Following that service, the dishwasher was documented as working great.

Because the service record specifically says buttons were installed, RR0120 does not convert that into a claim that the complete control panel was replaced. The documented dishwasher service chain is: Bad control panel diagnosed → Buttons installed → Dishwasher checked → Unit works great.

Repair Intelligence™: One Service Event, Multiple Failure Types

RR0120 contributes two different appliance-service events to the Repair Intelligence™ record.

The washer represents a mechanical drive-system failure: No-spin condition → motor coupling failure → component replacement → successful outcome.

The dishwasher represents a control/interface-related service event: Control-panel problem → buttons installed → successful outcome.

Keeping those events distinct is important. A multi-appliance appointment shouldn't be reduced to simply “two appliances repaired.” One household had two appliance problems requiring two different diagnostic paths, producing two successful appliance outcomes in one appointment.

Why “Washer Not Spinning” Isn't the Diagnosis

A washer that won't spin can have different possible causes. The symptom tells us what the appliance isn't doing. Diagnosis determines why. That's an important distinction.

Does a Bad Motor Coupling Mean the Washer Needs Replacement? Not necessarily. RR0120 provides a real example of a component-level failure that was repaired without replacing the entire washer. The technician identified the failed coupling, replaced that component, and restored operation.

Field-Verified Service Evidence

RR0120 includes multiple photographs from the actual Fort Lauderdale service event, visually supporting the component-level repair documented in the service record.

Verified Customer Feedback

After the service visit, the customer completed the Dispatch service survey and provided positive written feedback:

“Tristen was excellent! He was able to diagnose problems with washer & dishwasher and issues were resolved in a timely fashion.”

The feedback is particularly relevant to RR0120 because it independently confirms the overall service experience documented by the technician: Two appliance problems were diagnosed and the issues were resolved.

Repair Classification

🟢 Successfully Repaired

Reliability Index Entry

Frequently Asked Questions

Why is my washer running but not spinning?

Several mechanical or electrical problems can interfere with a washer's spin operation. The symptom alone doesn't identify the failed component. For this Whirlpool washer, diagnosis identified a bad motor coupling.

What happens when a washer motor coupling fails?

A motor coupling is part of the mechanical connection within the washer's drive system. If it fails, power may not be transferred through the system as intended, potentially affecting washer operation. The exact symptoms depend on the appliance and failure.

Can a washer motor coupling be replaced?

Yes, on washers designed with a replaceable motor coupling. RR0120 is a real-world example: the bad coupling was replaced and the washer was documented as running great afterward.

Does a washer that won't spin always have a bad motor coupling?

No. “No spin” is a symptom, not a diagnosis. Other components or conditions can potentially cause similar behavior. The appliance should be diagnosed before a coupling or other component is replaced.

Is a motor coupling repair worth doing?

It can be. The decision depends on the particular washer, its overall condition, repair requirements, and other factors. For RR0120, the technician performed the coupling repair successfully rather than recommending replacement of the washer.

Can dishwasher buttons be repaired or replaced?

Depending on the dishwasher design and what has failed, control/interface components may sometimes be serviced rather than replacing the entire appliance. For the KitchenAid dishwasher in RR0120, the technician documented a bad control panel, installed buttons, and reported that the unit worked great afterward.

Does a bad dishwasher control panel mean I need a new dishwasher?

Not automatically. The appropriate decision depends on the exact failure, available repair options, appliance condition, parts availability, and repair economics. RR0120 resulted in successful service of the existing KitchenAid dishwasher.

Can a technician repair a washer and dishwasher during the same appointment?

When scheduling, diagnosis, required parts, and the circumstances allow it, multiple appliances can sometimes be addressed during one service visit. RR0120 documents a Fort Lauderdale appointment in which both a Whirlpool washer and KitchenAid dishwasher were successfully serviced.

Professional Multi-Appliance Diagnostics in Fort Lauderdale, FL

The Appliance Experts provides reliable mechanical diagnostics, OEM drive system repairs, user interface panel servicing, and complete appliance repair for Whirlpool, KitchenAid, and all major home appliances throughout Fort Lauderdale and Broward County.
