Whirlpool Washer Not Spinning? Motor Coupling Replacement
Verified Repair Report™ #0001
When a Whirlpool washer fills normally but won’t spin, a failed motor coupling is one of the most common causes. This Verified Repair Report™ documents an actual service call in Deerfield Beach, Florida (33441), showing how the technician diagnosed the failed coupling, completed the replacement, tested the washer, and restored normal operation.
- 🟢 Repair Completed Successfully
Repair Snapshot
| Brand: | Whirlpool |
| Appliance: | Top Load Washer |
| Model: | Not Recorded |
| Problem: | Washer Won't Spin |
| Diagnosis: | Failed Motor Coupling |
| Repair: | Installed New Motor Coupling |
| Location: | Deerfield Beach, FL. 33441 |
| Report #: | 0001 |
Customer Complaint
The homeowner reported that the Whirlpool washer would fill with water normally, but the basket would not spin during the wash or spin cycle. Clothing remained wet after each load, even though the machine appeared to complete portions of the cycle.
Symptoms Reported
✔ Washer fills normally
✔ Washer will not spin
✔ Clothes remain wet after cycle
✔ Motor runs but basket does not rotate
✔ Intermittent burning rubber odor may be present
Technician Inspection
The technician verified the complaint by testing the washer through a complete cycle.
The washer filled and drained properly, but the spin cycle failed.
Further inspection found the motor operating normally while the transmission failed to receive power.

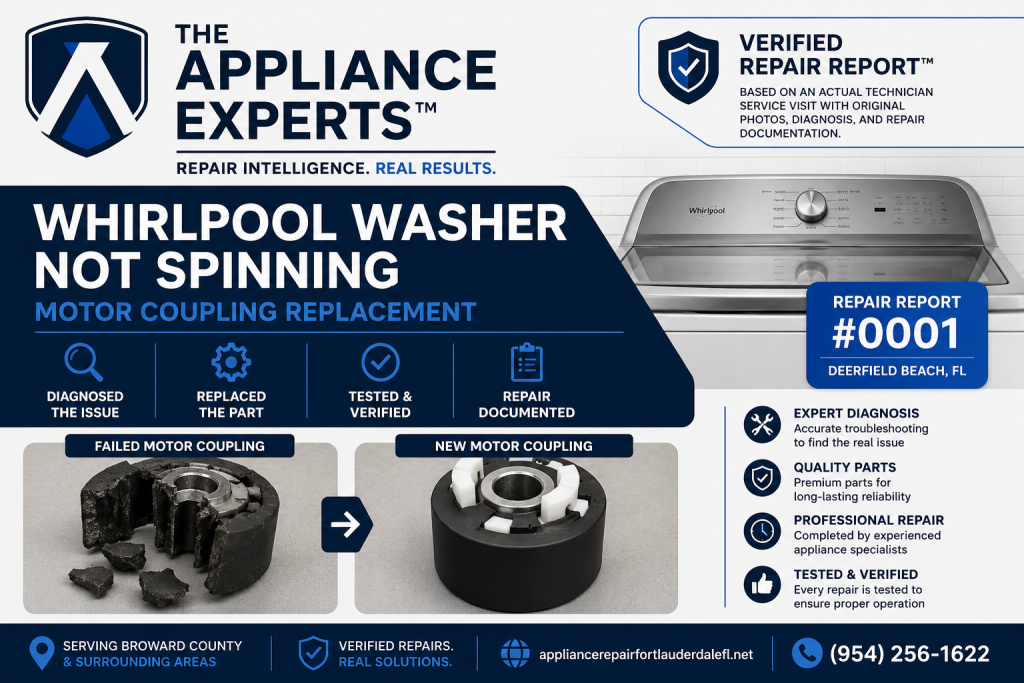

The technician removed the motor assembly and discovered the original motor coupling had completely failed.
No additional drivetrain damage was found.
Diagnosis
Failed Motor Coupling
The flexible motor coupling that transfers power from the drive motor to the transmission had broken apart from normal wear.
Without this connection, the motor could run normally while the transmission remained stationary.
Although the washer filled with water and agitated normally, the failed safety switch interrupted the drain and spin functions, causing the cycle to stop before completion.
No problems were found with the drive motor, transmission, drain pump, or timer.
Repair Performed
- Removed cabinet
- Removed drain pump
- Removed motor assembly
- Replaced failed motor coupling
- Reassembled washer
- Tested complete wash and spin cycle
- Verified proper operation
Failure Analysis
Motor couplings are considered normal wear components on many Whirlpool direct-drive washers.
The original rubber isolator had deteriorated over time until it separated completely.
Once the coupling fails, the motor can continue operating while the transmission receives little or no rotational force.
Fortunately, this failure usually does not indicate transmission damage when repaired promptly.
Technician Assessment
Repair Complexity: 🟡 Moderate Service
Diagnostic Difficulty: Medium
Parts Replaced: Motor Coupling
Repair Status: Completed
Repair Cost Category: $$
DIY Friendly: 🔴 No
🛠 Repair Classification
🟡 Moderate Repair
This repair required removal of the washer cabinet, motor assembly, and drain pump to access the failed coupling.
Although the repair is common on Whirlpool direct-drive washers, it requires significant disassembly and proper reassembly before testing.
When repaired promptly, this failure is generally one of the more cost-effective washer repairs.
Homeowner Tip
If your Whirlpool washer fills with water and you can hear the motor running, but the basket does not spin, the problem is not always the motor itself. On many Whirlpool direct-drive washers, a failed motor coupling can prevent power from transferring from the motor to the transmission. Having the issue diagnosed early can often prevent unnecessary parts replacement and help determine if the washer is worth repairing.
Preventive Maintenance Tips
Motor couplings are designed to protect the washer drivetrain, but they can wear out after years of normal use. To help reduce stress on your washer components:
✔ Avoid overloading the washer with heavy loads
✔ Balance large items like blankets and towels before starting a cycle
✔ Stop using the washer if you hear unusual grinding, slipping, or banging noises
✔ Investigate burning rubber smells or changes in performance early
✔ Have spinning or agitation problems inspected before additional components are damaged
Catching washer problems early can help prevent additional damage and extend the life of the appliance.
Common Symptoms
- Washer fills with water but does not spin.
- Washer agitates poorly or not at all.
- Clothes remain soaking wet.
- Motor can be heard running.
- Spin cycle fails.
- Burning rubber smell may be noticed.
- Cycle finishes without cleaning clothing properly.
Machine Information
Brand: Whirlpool
Appliance: Top Load Washing Machine
Model number: Not Recorded
Repair Status: ✔ Service Completed Successfully
Location: Deerfield Beach, Florida 33441
Repair Report: #0001
Frequently Asked Questions
1. Why does my Whirlpool washer fill with water but not spin?
A Whirlpool washer that fills but does not spin can be caused by several issues, including a failed motor coupling, lid switch problem, drive system failure, or other mechanical issues. On many Whirlpool direct-drive washers, the motor coupling connects the motor to the transmission. When it breaks, the motor may still run but the basket will not spin.
2. How do I know if my washer motor coupling is bad?
Common signs of a failed washer motor coupling include the washer not spinning, poor agitation, wet clothes after the cycle finishes, or hearing the motor running without the basket moving. A technician can confirm the problem by inspecting the drive system and testing the washer components.
3. Can a Whirlpool washer motor coupling be replaced?
Yes. A broken motor coupling can usually be replaced without replacing the entire washer. After installing a new coupling, the washer should be tested through the wash and spin cycles to verify proper operation.
4. Is it worth repairing a Whirlpool washer that won't spin?
In many cases, yes. A failed motor coupling is often considered a cost-effective repair, especially on Whirlpool direct-drive washers that are otherwise in good condition. A proper diagnosis can determine whether repair or replacement makes more sense.
5. What causes a washer motor coupling to break?
Washer motor couplings commonly fail from normal wear, age, heavy loads, or repeated stress on the drive system. The coupling is designed as a protective connection between the motor and transmission, which can help prevent more expensive damage.
