Frigidaire Refrigerator Water Dispenser Not Working — Frozen Water Line Diagnosis

Customer Complaint

The customer in Coconut Creek reported that their Frigidaire refrigerator would not dispense water when the paddle was pressed, even though they could hear a humming sound.

Common symptoms of a frozen refrigerator water line include:

💧 Water dispenser yields no water.
💧 Ice maker still produces ice (in some cases).
💧 Humming sound from the water inlet valve when activated.
💧 Slow or trickling water flow before fully stopping.

Technician Inspection

The technician performed a full diagnostic on the water delivery system. After verifying that the water filter and water inlet valve were operating correctly, the technician traced the blockage to the water line routed through the interior of the freezer door.

✅ Verified proper water pressure to the refrigerator.
✅ Tested water inlet valve and micro-switches.
✅ Confirmed frozen blockage inside the freezer door water line.

Failure Analysis

Frozen Water Line inside Freezer Door

In side-by-side refrigerators, the tubing that supplies water to the dispenser often runs directly through the freezer door. If the freezer temperature drops too low or if cold air is misdirected, the water sitting inside this tube can freeze solid, completely blocking water flow to the dispenser.

❌ Freezer temperature too low or air flow misdirected
❌ Water freezes inside the dispenser tubing
❌ Inlet valve hums, but water is physically blocked

Repair Performed

🟢 Successful Repair Completed

The technician:

✅ Safely thawed the frozen section of the water line inside the door.
✅ Adjusted freezer temperature settings to prevent future freezing.
✅ Flushed the water system and confirmed proper dispenser operation.

Thawing the line and adjusting the settings fully restored normal operation without requiring any new parts.

Technician Assessment

Repair Complexity: Basic

Diagnostic Difficulty: Medium

Parts Replaced:

• None (Thawed existing frozen line)

Repair Recommendation:

🟢 Repair Completed Successfully

A proper, thorough diagnosis is crucial in this scenario. Many inexperienced technicians might assume the water inlet valve or filter housing has failed, leading to expensive and unnecessary parts replacement. Identifying the frozen line saved the customer significant repair costs.

Preventive Maintenance Tips

Help prevent your refrigerator water line from freezing:

✅ Maintain Proper Temperatures

Keep the fresh food section around 37°F and the freezer at 0°F.

✅ Use the Dispenser Regularly

Frequent use keeps water flowing through the lines, reducing the chance of stagnant water freezing in cold pockets.

✅ Do Not Block Air Vents

Avoid packing food tightly against the interior air vents, which can force ultra-cold air directly toward the door insulation.

✅ Replace Water Filters Promptly

A clogged filter reduces water pressure, making the slow-moving water in the lines more susceptible to freezing.

Common Symptoms

A frozen water line may cause:

⚠️ Water dispenser completely stops working
⚠️ Water flows very slowly or trickles
⚠️ Humming noise when pushing the dispenser paddle
⚠️ Ice maker continues to work while water dispenser fails

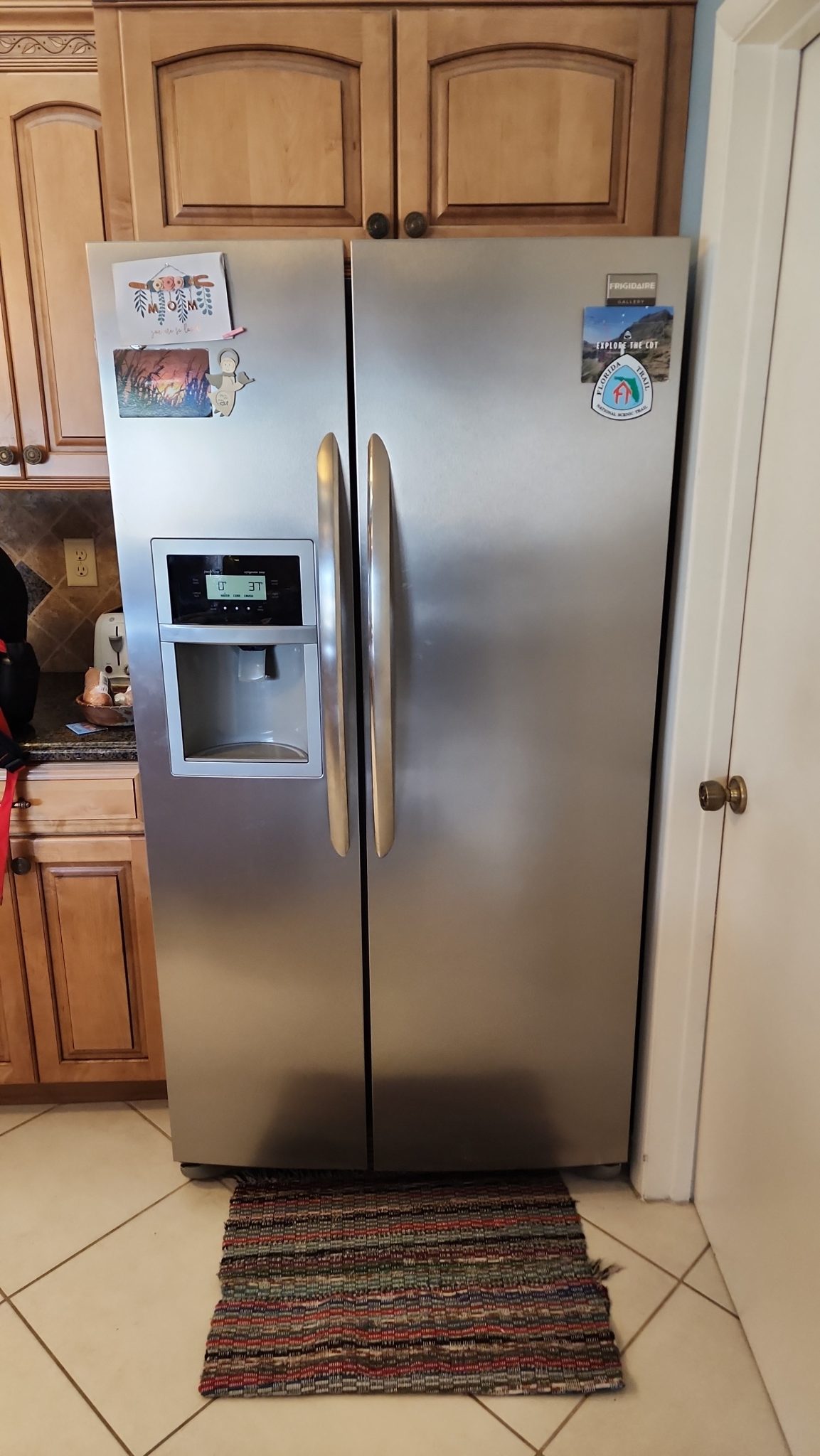

Machine Information

Brand: Frigidaire
Appliance: Side-by-Side Refrigerator

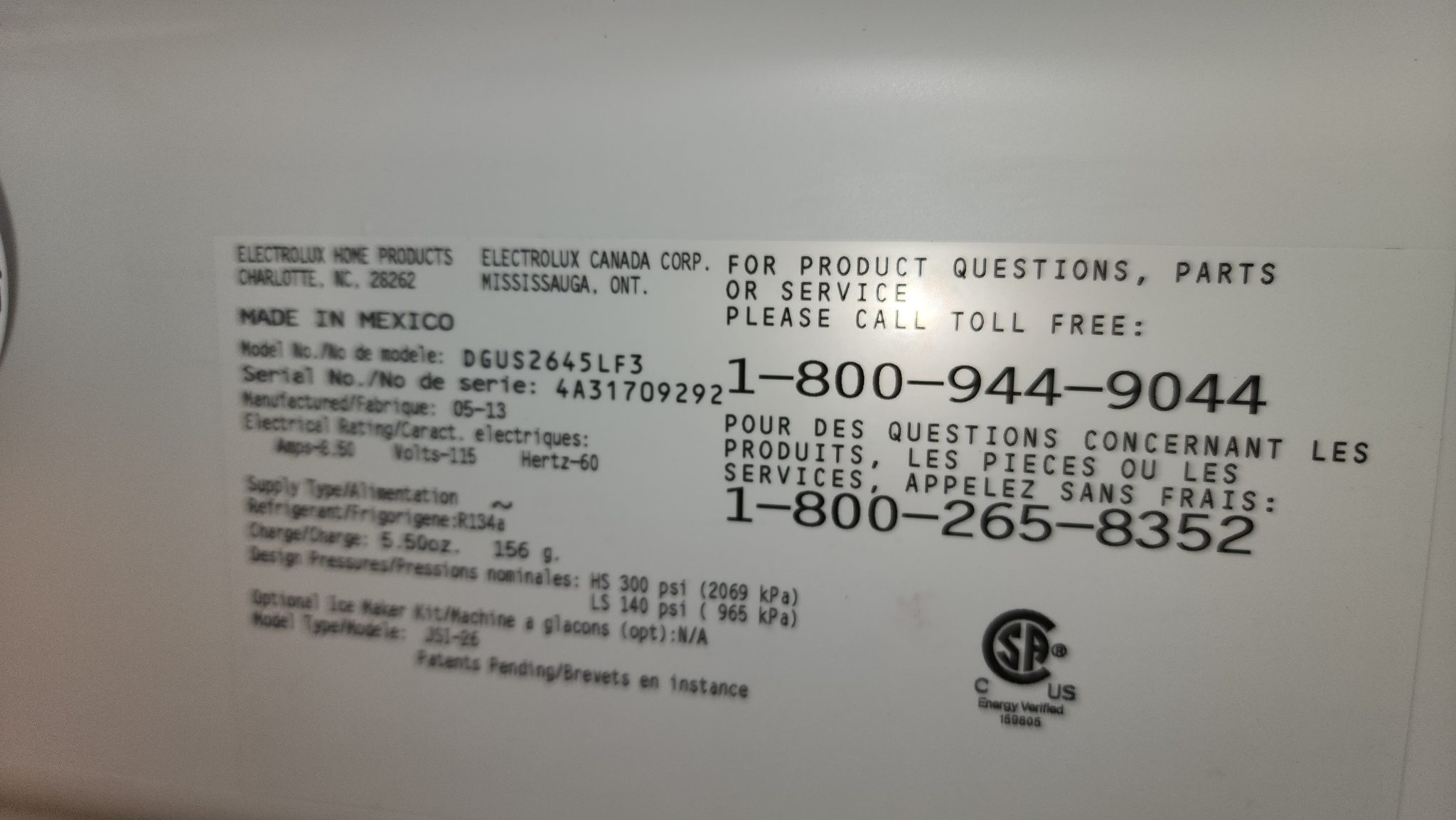

Model: DGUS2645LF3
Repair Report: 0046

Repair Status: ✔ Service Completed Successfully
Location: 📍 Coconut Creek, Florida 33066

Repair Classification

🟢 Repair Completed Successfully
