Whirlpool Microwave Magnetron, Capacitor & Diode Failure in Boca Raton, FL 33428

Customer Complaint

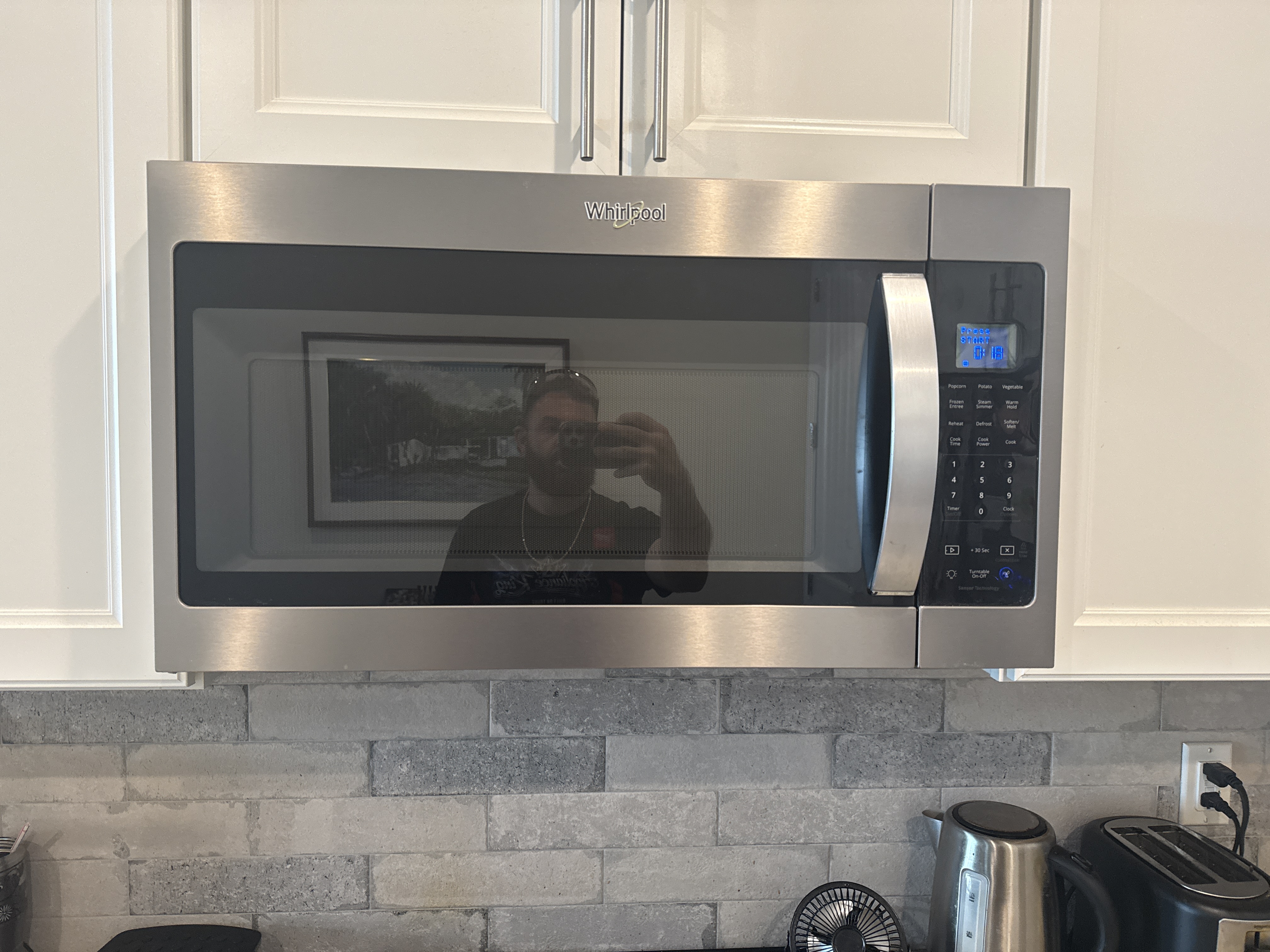

A homeowner in Boca Raton, FL 33428 requested service for a Whirlpool over-the-range microwave.

The original customer-reported symptom was not documented in the service notes available for this report.

Technician Inspection

The Appliance Experts technician diagnosed multiple component problems within the high-voltage system of this Whirlpool microwave.

A microwave can still appear to have electrical power even when a problem within its high-voltage heating system prevents it from heating properly.

✅ Inspected high-voltage system.
✅ Diagnosed bad magnetron, capacitor, and diode.
✅ Recommended repairing the diagnosed high-voltage system components.

Failure Analysis

High-Voltage Heating System Failure

The magnetron is the component responsible for generating the microwave energy used to heat food. However, the magnetron does not operate by itself.

The high-voltage capacitor and high-voltage diode are part of the microwave's high-voltage electrical system. Together with the magnetron and other components, they help create and manage the electrical conditions required for the magnetron to operate. A failure involving one or more components within this system can interfere with microwave heating.

Repair Performed

🟡 Diagnosed — Customer Chose Replacement

After receiving the diagnosis and repair estimate, the homeowner decided not to proceed with the repair and instead replace the microwave.

No magnetron, capacitor, or diode replacement is documented as having been performed during this service event. Because the repair was not performed, there is no post-repair operating result to report.

Technician Assessment

Repair Complexity: Advanced

Diagnostic Difficulty: High

Recommended Parts:

• Magnetron
• High-voltage capacitor
• High-voltage diode

Final Status:

🟡 Diagnosed — Customer Chose Replacement

Microwave repair-versus-replacement decisions can depend on appliance age, overall condition, number of components requiring repair, cost of the recommended repair, parts availability, installation configuration, and cost of a suitable replacement. In RR0056, the technician diagnosed three high-voltage components requiring attention, and the homeowner decided that replacing the microwave made more sense for their situation.

Preventive Maintenance Tips

Failures involving electronic and high-voltage microwave components are not necessarily preventable through routine homeowner maintenance, but several basic practices can help support proper microwave operation:

✅ Keep the interior clean

Clean food residue and spills according to the manufacturer's instructions.

✅ Use microwave-safe cookware

Follow manufacturer recommendations regarding containers and materials used inside the microwave.

✅ Don't operate the microwave empty

Operate the appliance as directed by its manufacturer.

✅ Don't ignore unusual sounds, odors or arcing

Stop using the microwave if it exhibits abnormal electrical behavior and have the problem evaluated.

✅ Keep ventilation areas unobstructed

Over-the-range microwaves also serve as part of the kitchen ventilation setup, so accessible filters and ventilation areas should be maintained.

Common Heating Failure Symptoms & Components

Microwave problems can have different causes even when the homeowner experiences similar symptoms. Depending on the complaint, diagnosis may involve components or systems such as:

⚠️ Door switches
⚠️ Fuses
⚠️ Electronic controls
⚠️ Power-supply components
⚠️ Magnetron
⚠️ High-voltage capacitor
⚠️ High-voltage diode
⚠️ Other high-voltage circuitry

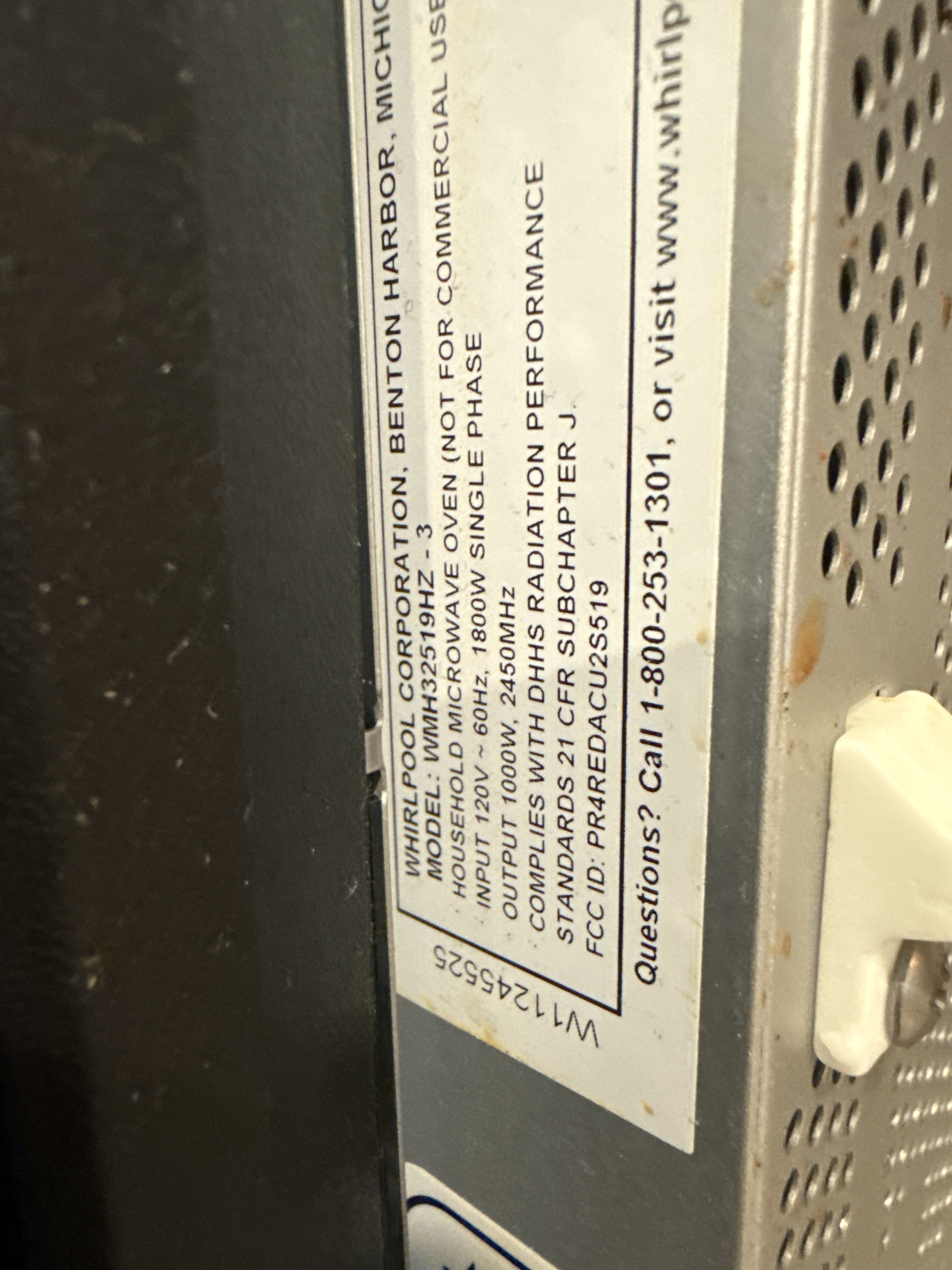

Machine Information

Brand: Whirlpool
Appliance: Over-the-range Microwave
Repair Report: 0056

Repair Status: 🟡 Diagnosed — Customer Chose Replacement
Location: 📍 Boca Raton, Florida 33428

Repair Classification

🟡 Diagnosed — Customer Chose Replacement

Reliability Index Entry

Frequently Asked Questions

1. What does a microwave magnetron do?

The magnetron generates the microwave energy used to heat food inside the appliance.

2. What happens when a microwave magnetron fails?

A magnetron problem can prevent normal microwave heating. However, heating problems can have other causes, so the symptom alone does not establish that the magnetron has failed.

3. What does the high-voltage diode do in a microwave?

The high-voltage diode is part of the electrical circuit that helps provide the conditions necessary for magnetron operation.

4. What does a microwave high-voltage capacitor do?

The capacitor is another component within the microwave's high-voltage system and works as part of the circuitry supporting magnetron operation.

5. Can a magnetron, capacitor and diode all be bad during the same service call?

Multiple components can be diagnosed during a single appliance service event. In RR0056, the technician documented the magnetron, capacitor and diode as bad.

6. Was this Whirlpool microwave repaired?

No. After receiving the diagnosis and repair estimate, the homeowner decided to replace the microwave rather than proceed with the repair.
